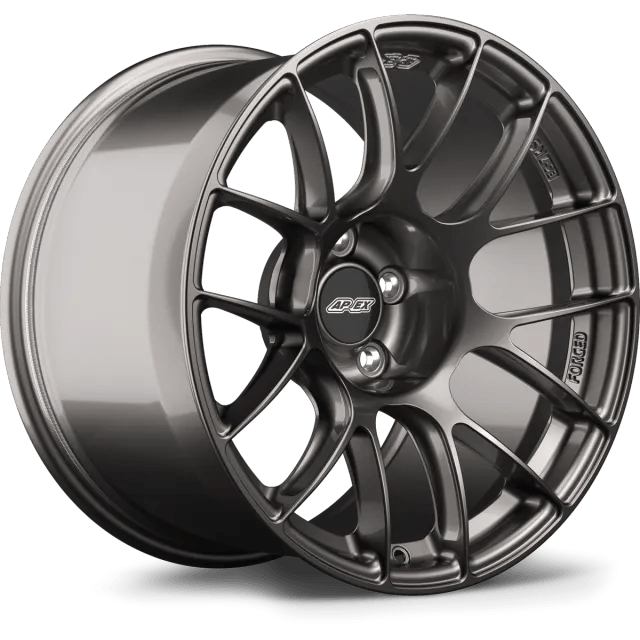

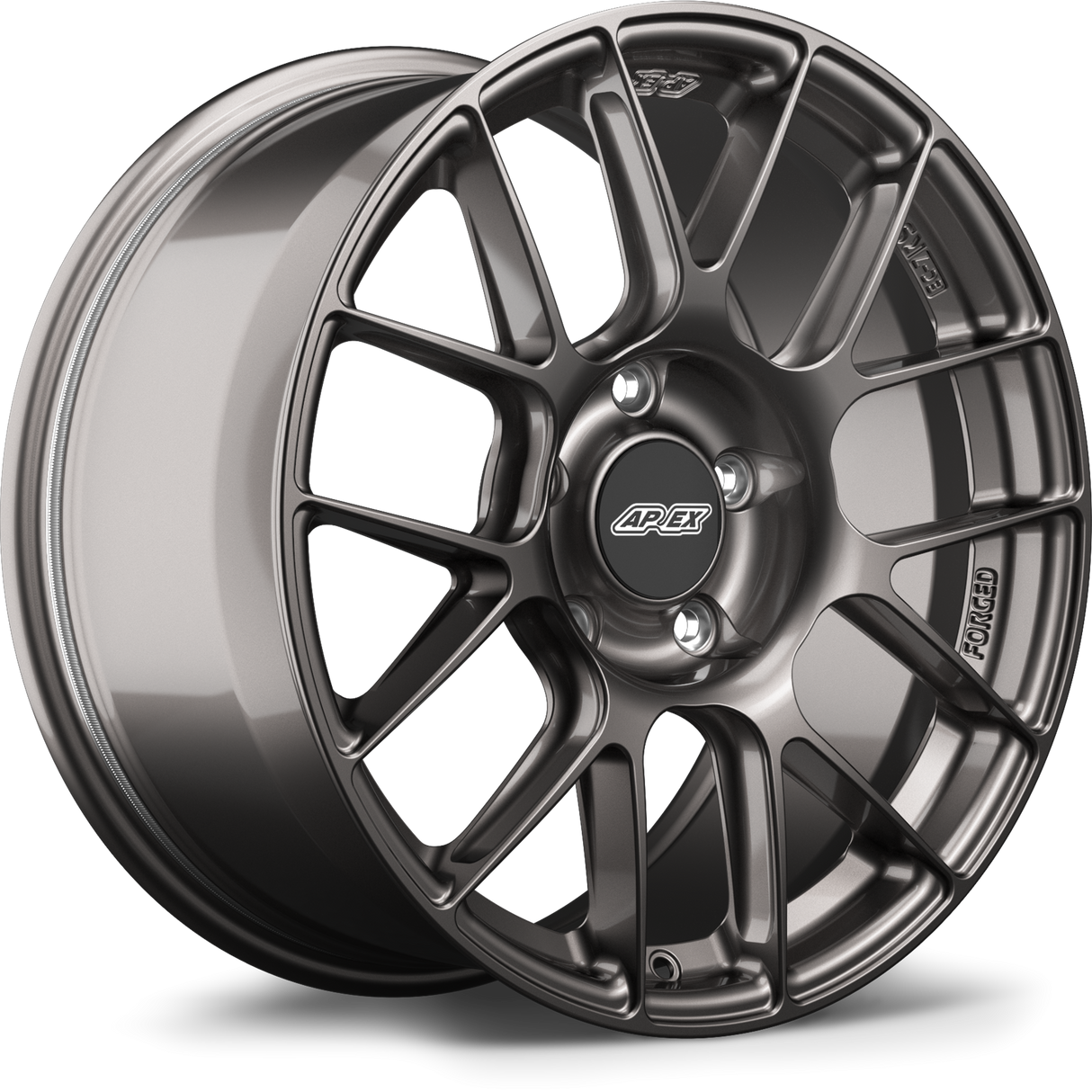

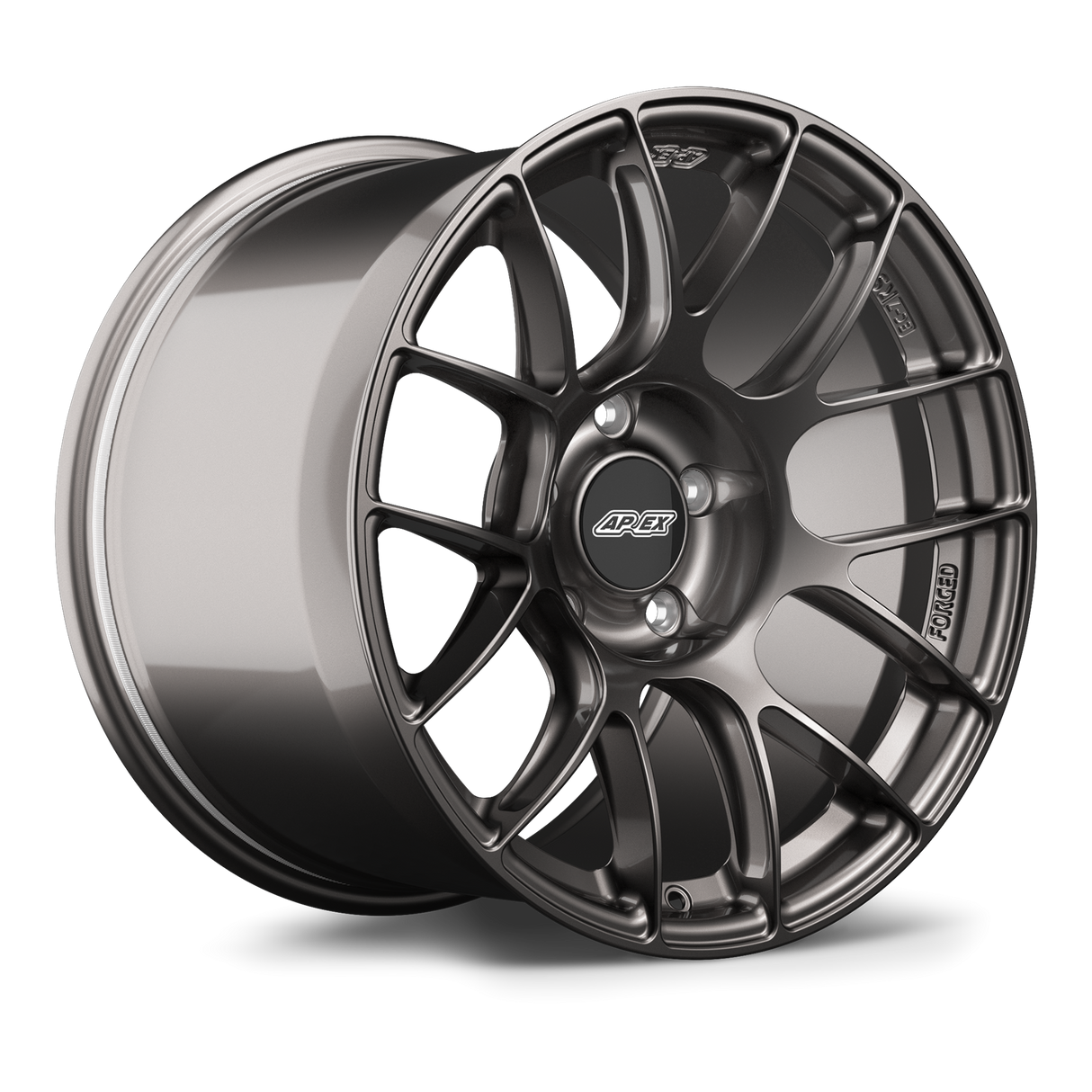

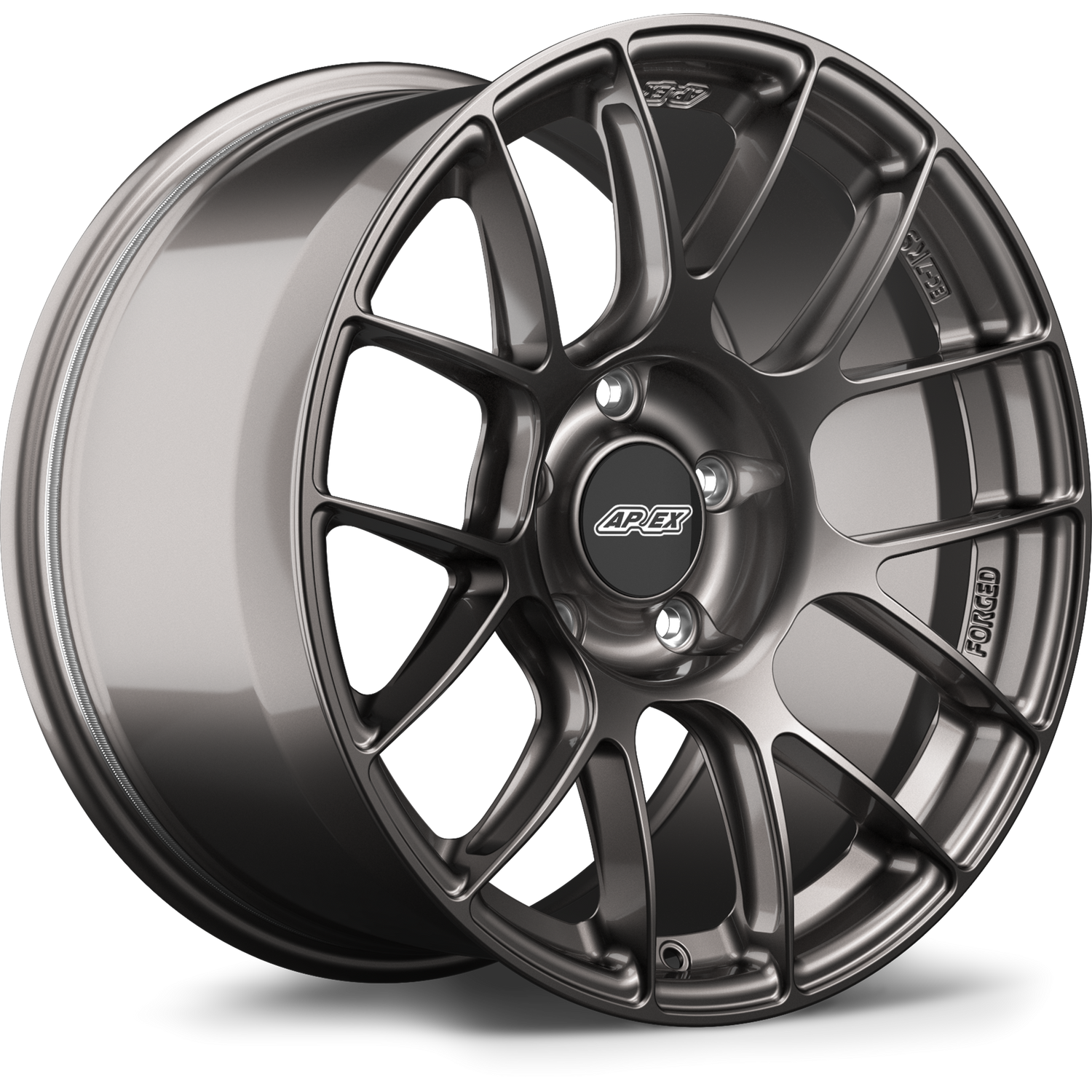

Apex 18" EC-7RS Forged 5x130 Wheel (Anthracite) - Porsche 911 (993/996) 718/Boxster/Cayman (986/987/982)

10K Tons of Pressure

Our new forgings weigh as much as 120 pounds before machining. To form such a thick blank we require special equipment capable of 10 000 metric tons of pressure. This extreme pressure increases the strength of the aluminum by eliminating porosity and improving the grain structure.

True Motorsport Blanks

Many companies use 3rd-party blanks intended for non-motorsport wheels which can severely limit sizes concavity spoke design and critical brake clearance. We designed our very own blank profiles from scratch to give us total control over the final product.

Side-Milled Spokes

One of the most significant upgrades to the EC-7RS is the addition of wider and deeper side-milled spokes. Any excess material that doesn’t add strength is carved out using a precision CNC ball cutter. Side-milling is often deemed cost-prohibitive by others but for true performance without compromise we believe it's essential.

A Stronger Lightweight Wheel

Our forged Sprint™ wheels are lightweight without the strength compromises found on typical lightweight wheels. First we carved out as much material as possible then we purposefully added one pound back to reinforce critical areas creating a stronger inner lip and a higher load rating.² What’s the point of a lightweight wheel if it’s fragile?

Weight Optimized

We conducted extensive Finite Element Analysis (FEA) to reinforce high-stress areas and to remove material where it didn’t improve strength. The result is a wheel that is exceptionally light without the strength compromises found on typical lightweight wheels.²

• Wheel Weight

• Load Rating

Independently Tested

We don't rely solely on computer simulations or unverifiable in-house testing. We believe independent testing is critical to protect consumers in this unregulated industry. We chose STL an independent lab in Ohio to test our Sprint™ wheels far above JWL standards including increases in testing duration impact drop height and total load.

Tougher Inner Lip

Introducing the Sprint™ spec inner lip with a unique channel profile that makes it even stronger than our previous designs. So even though our Sprint™ wheels are pounds lighter than comparable flow formed wheels the inner lip is stronger.

32% More reinforcement than our flow formed wheels³

Big Brake Clearance

From day one APEX has been on a mission to build wheels that clear big brakes. Our new forged wheels are the product of everything we’ve developed over the past 10+ years including an innovative high-clearance barrel design and vehicle-specific spoke profiles.

Deeper Concavity

Our new forgings were redesigned to create extra deep concave spoke profiles. Their new shape allows us to make any profile from flat to deep and everything in between. Each one is optimized for a specific application using 3D laser scans of factory and aftermarket brake kits.

Paintless Knurled Bead

Whether it's a day at the track or months of street driving repeated hard braking and acceleration can make a tire slip along the bead seat and go out of balance causing vibration. Knurled beads help but are less effective when painted over. Our forged line features unpainted knurled beads that stay sharp and maximize grip.

Built for Impact Sockets

Track wheels need track tools. Don’t settle for wheels that require undersized tuner lugs or thin walled sockets. All APEX wheels accommodate over-sized race lugs and impact sockets to make swapping wheels lightning fast.

32mm Socket Diameter Clearance

Laser-Engraved Specs

As track enthusiasts ourselves we know how frustrating it is to try to locate and decipher wheel specs that have been hastily hammered into the rim or become unreadable over time. With our new Sprint™ wheels we chose to invest a little extra and laser-engrave the specs on the barrel in plain sight making them easy to find and read. (You’re welcome.)

A Wheel You Can Depend On

All APEX wheels come with a lifetime structural warranty against defects in workmanship and materials plus a 1 year finish warranty. Exchanges are fast easy and hassle-free.
See terms and conditions.

ACCIDENTAL
DAMAGE
REPLACEMENT

Curb rash or pothole damage on the street? Make an oopsie at the track? We’ve all been there. APEX is proud to offer 50% off replacement wheels no matter the damage.
See terms and conditions.
